Model | CH800 | |
Working temperature range | -20°C RT | |
Cooling capacity | @20°C | 750W |
@10°C | 650W | |
@0°C | 500W | |
@-10°C | 400W | |
@-20°C | 200W | |
Time to cool from RT (25°C) down to -20℃ | ≤30min | |
Pump Flow Max. | 22 L/min | |
Pump pressure Max. | 1 bar | |
Bath volume | 5 L (max storage 5.3L) | |
Temperature stability DIN 12876 | ±0.3 K | |
Temperature Display Accuracy | ±0.3°C | |
Refrigerant | R290 | |
Power supply | 100-120VAC/200-240VAC; 50Hz/60H | |
Wattage | Max 750W | |
Weight | ≤35Kg | |
Dimension(WxDxH) | 235×468×535 mm | |
Noise | <55db | |

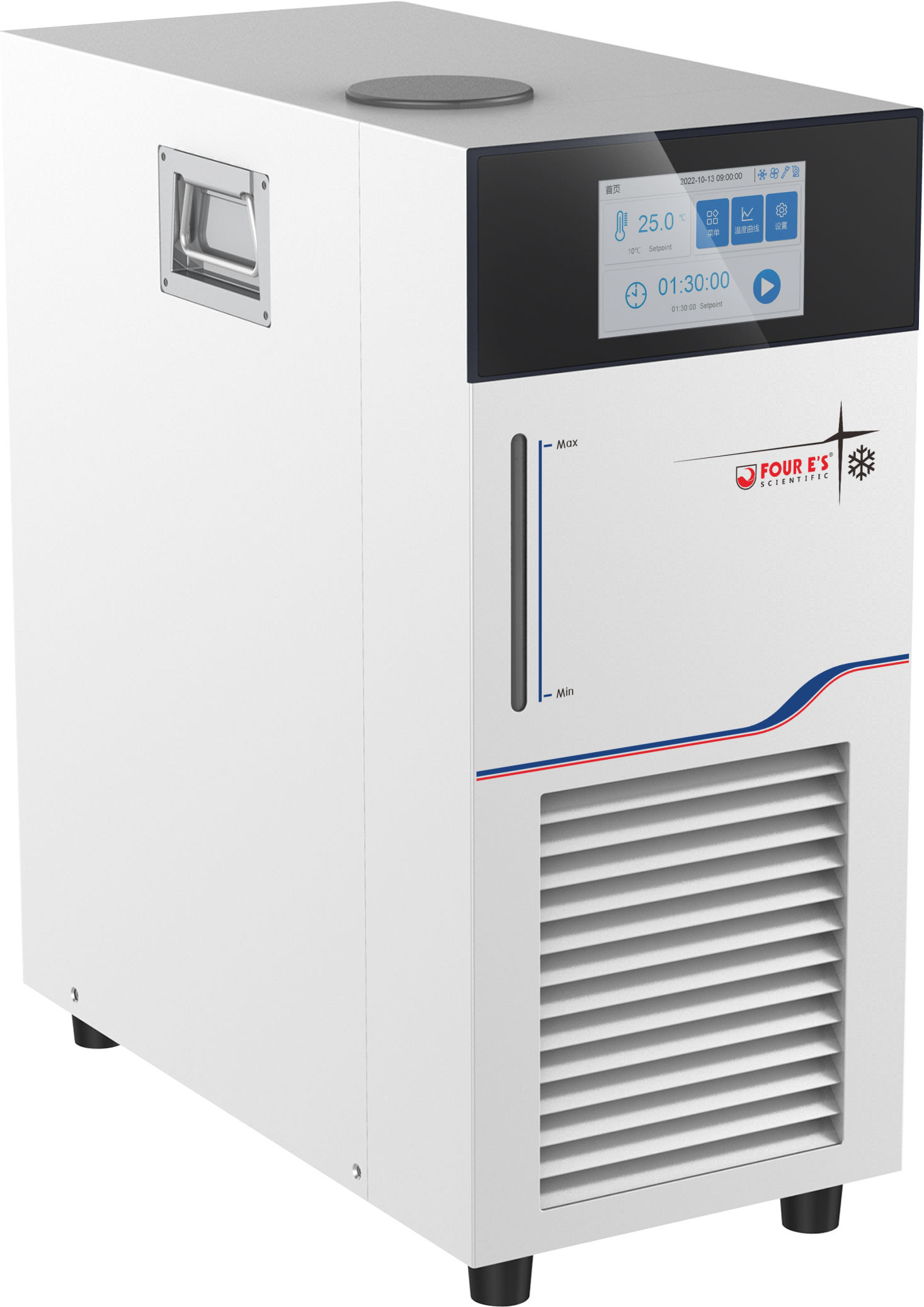

Four E's Scientific Recirculating Chiller CH800
Product Description
Recirculating Chiller CH800
Wide temperature range with fast cooling delivers stable, precise thermal control.
Compact, bench-friendly design suits fume hoods and space-limited laboratories.
Touchscreen interface enables easy monitoring, setup, and operational control.
Comprehensive safety protections ensure reliable, continuous cooling performance.
The CH800 Recirculating Chiller provides efficient, environmentally friendly cooling with precise temperature stability for laboratory and research applications. Featuring fast cool-down, intuitive touchscreen control, robust safety protections, and a compact design, it is ideal for cooling rotary evaporators, analytical instruments, and other temperature-sensitive equipment.
Technical Documents
Warranty
24-Month Manufacturer Warranty
Research Use Only
This product is for research use only.
Shipping Info
A flat shipping fee of £300 per order applies to all purchases. This charge applies to the entire basket, not individual items
Customers may alternatively arrange their own shipping if they have existing logistics arrangements in place. Please contact us prior to ordering to coordinate self-collection or third-party transport.
