Model | MutiEX 032 |
Volume Capacity | 50-1000μl |
Sample Quantities | 1-32 |
Plate Quantity | 2 |
Plate Type | 96-well deep-well plate (conical/round bottom) |
Processing Time | 20min-40min/run (depending on reagent types and volumes） |
Reagent Type | Magnetic bead-based reagent kits (open system) |
Program management | Create, edit, and delete options available |
Heating Temp. | 37℃-125℃ |
Mixing Intensities | Adjustable / 8 Levels |
Max. Stirring Speed | 10Hz (10 times up and down in 1 second) |
Magnetic Bead Recovery Rate | 98% |
Inter-well Purification Variation | CV＜3% |
Working Noise | ＜55dB |
Data Storage Capacity | ＞500 programs |
Dimension | 349*325*390mm |
Display | 10-inch color touch screen |
Lighting | Yes |
Contamination Control | UV light |
Power Supply | 100-240VAC, 50/60Hz |
Weight | 25KG |
Extension ports | 2 USB port, 1 Ethernet port |

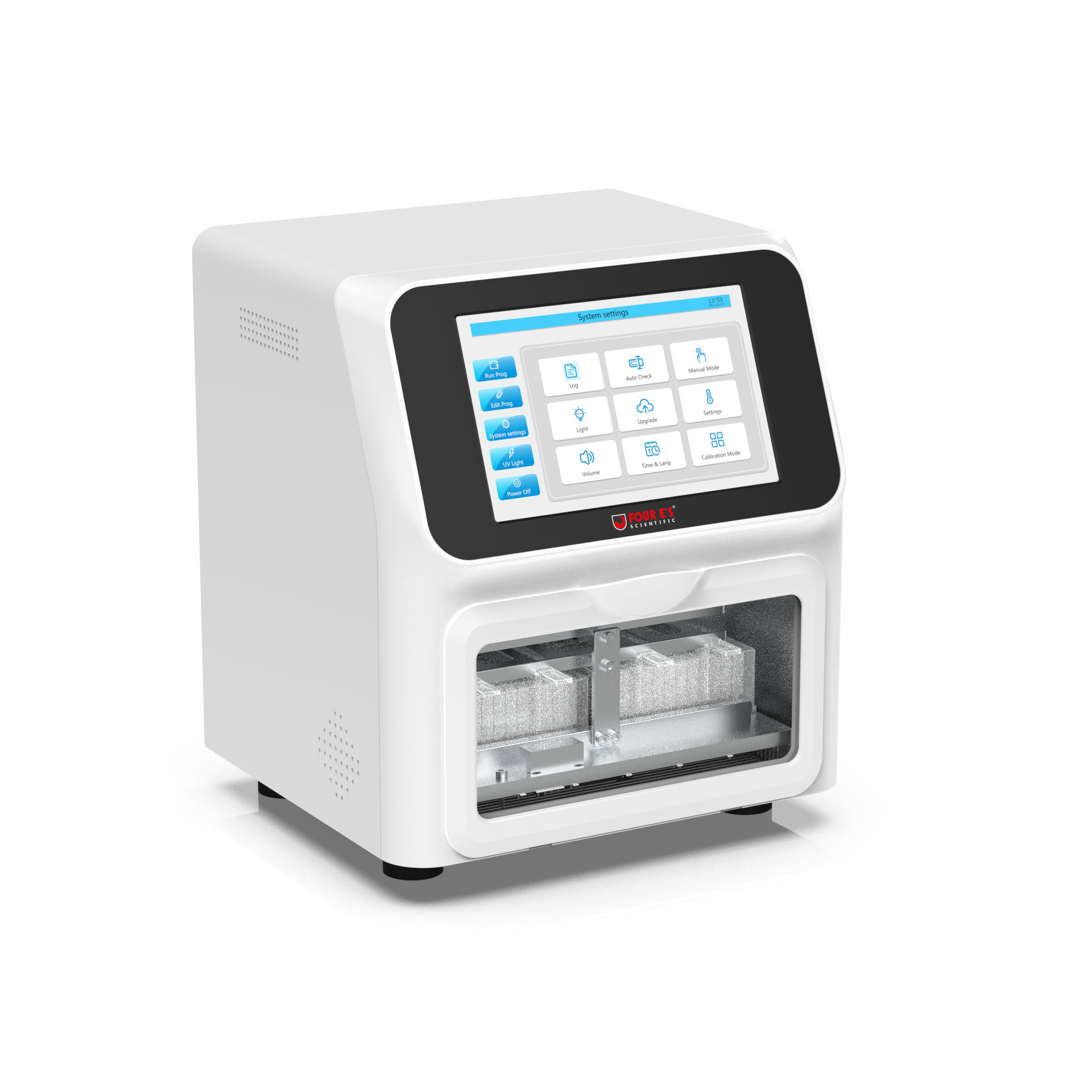

Four E's Scientific Nucleic Acid Extractor MultiEX 032
Product Description
Nucleic Acid Extraction System MultiEX 032
Processes up to 32 samples per run using magnetic bead nucleic acid extraction.
Fully automated with touchscreen interface minimizes manual errors and improves efficiency.
Advanced stirring and multi-module heating maximize nucleic acid yield and sample processing.
Built-in UV disinfection and safety interlocks prevent contamination and ensure user safety.
The MultiEX 032 Nucleic Acid Extraction System automates high-throughput nucleic acid purification for up to 32 samples. Combining magnetic bead technology, precise temperature control, advanced stirring, and integrated UV disinfection, it delivers efficient, reliable, and contamination-free extraction for research, commercial, and diagnostic laboratories.
Technical Documents
Warranty
24-Month Manufacturer Warranty
Shipping Info
A flat shipping fee of £300 per order applies to all purchases. This charge applies to the entire basket, not individual items
Customers may alternatively arrange their own shipping if they have existing logistics arrangements in place. Please contact us prior to ordering to coordinate self-collection or third-party transport.
Research Use Only
This product is for research use only.
