Model | Optima96 |
PN | PR122 |
Sample Capacity | 0.2mL PCR Tubes, 0.2mL 8-tube Strips, 0.2mL 96-well PCR Plate (non-skirted/semi-skirted) |
PCR reaction volume | 10-100 µl |
Heating lid temperature | 30-110°C |
Max. block heating Rate | 5°C/s |
Max. block cooling Rate | 4 °C/s |
Temperature uniformity | <0.5°C (20s after reaching 95°C ) |
Sample temperature range | 4°C-100°C |
Temperature accuracy | ±0.25°C (35°C - 99.9°C) |
Technology (heating/Cooling) | Semiconductor Peltier technology, 6 independent blocks |
Display resolution | 0.1°C |
GRADIENT
Maximum temperature difference between blocks | 25°C (max. 5°C between two adjacent blocks) |
Temperature difference between two adjacent blocks | 0.1°C-5.0°C |
Gradient temperature accuracy | ±0.25°C (35°C - 99.9°C) |
Gradient temperature uniformity | <0.5°C (20s after reaching 95°C) |
PROGRAM FUNCTION
LCD display | 7" LCD touch screen, real-time display of PCR process, can be used while wearing gloves |
Max. number of steps | 55 |
Time increment / decrement | 1-120s, for long Range PCR experiment |
Temperature increment / decrement | 0.1°C-10.0°C, for Touchdown PCR |
Maximum number of cycles | 999 |
OTHER FEATURES
Tm value calculation function | Yes |
Automatic pause/power-off protection | Yes |
Communication interface | USB 2.0 |
Storage | External USB Drive and Internal Memory |
Program storage capacity | Up to 1,000 programs in the instrument, Unlimited storage with USB flash drive |
POWER SUPPLY
Input power | 100-240V, 50-60Hz |
Max. power | 750 V A |
Max. current | 10A |
Noise | <55dB |
OTHER FUNCTIONS
Specific amplification | The blocks do not start heating until the heating lid temperature reaches the set temperature so as to prevent sample evaporation and improve reaction specificity. |
Template | Pre-stored multiple standard experiment templates, simplify the tedious programming steps |
Certification | CE |
Dimensions (lxWxH) | 364x243x244mm |
Net weight | 8.7kg |

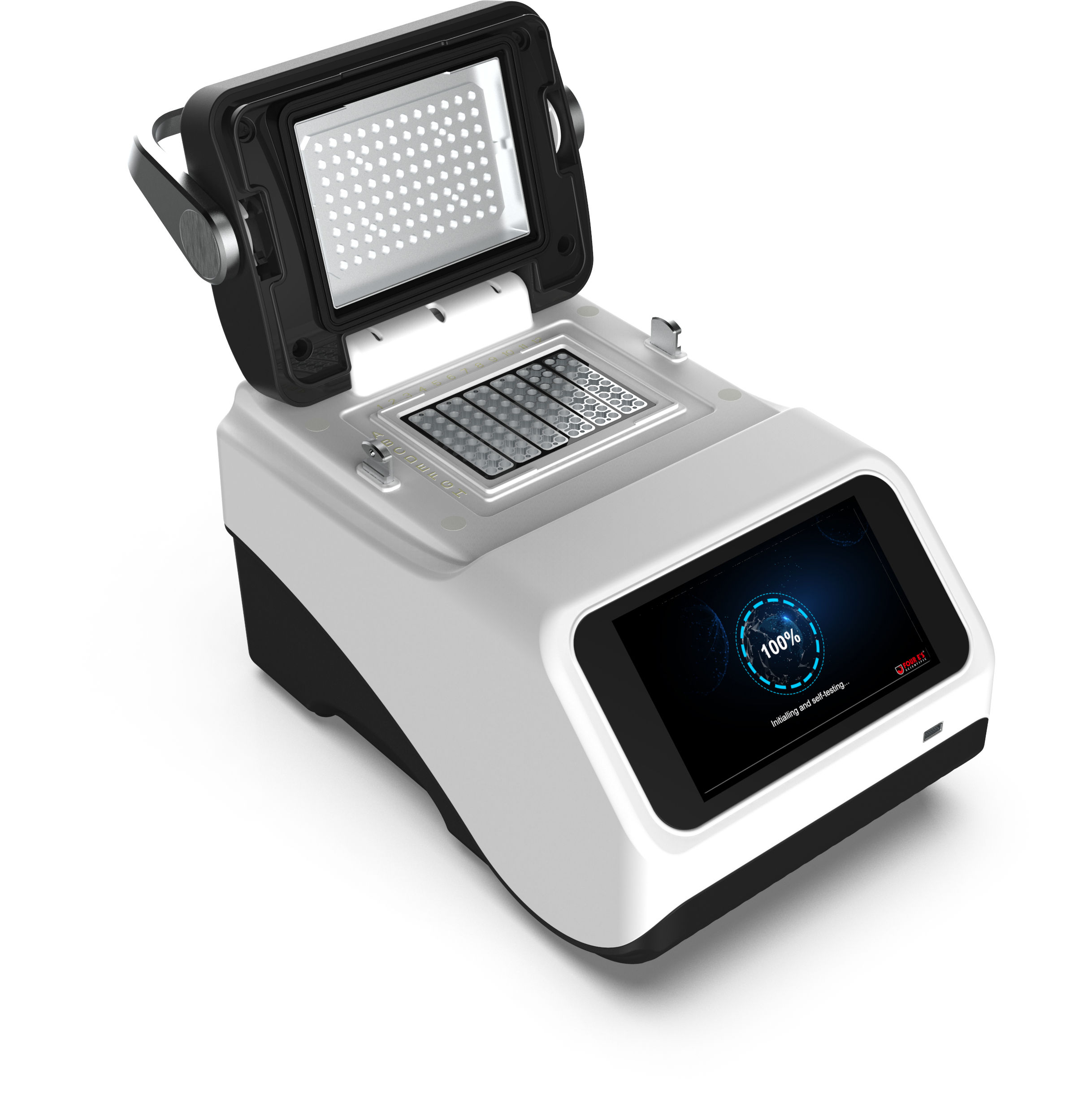

Four E's Scientific Gradient PCR Optima96 PR122
Product Description
Gradient PCR PR112
Six independent temperature blocks provide precise gradient control for PCR optimisation.
Heated lid prevents evaporation; auto-heating off reduces non-specific amplification.
Fast heating/cooling rates with uniform temperature minimize edge effects.
USB interface and touchscreen allow protocol import/export and easy monitoring.
The Gradient PCR Optima 96 delivers precise thermal cycling with six independent blocks for optimal PCR assay development. Featuring fast heating/cooling, heated lid evaporation control, and intuitive touchscreen with USB protocol management, it ensures reproducible, high-quality results for a variety of PCR applications.
Technical Documents
Warranty
24-Month Manufacturer Warranty
Research Use Only
This product is for research use only.
Shipping Info
A flat shipping fee of £300 per order applies to all purchases. This charge applies to the entire basket, not individual items
Customers may alternatively arrange their own shipping if they have existing logistics arrangements in place. Please contact us prior to ordering to coordinate self-collection or third-party transport.
