Model | OHS-60D |
Max. torque [N·cm] | 60 |
Speed range [rpm] | 50-2000 |
Speed increment [rpm] | Stepless, 10rpm |
Speed accuracy | ±1% |
Viscosity max. [mPas] | 50,000 (2000 rpm) 100,000 (1000 rpm) |
Chuck Diameter Range [mm] | 0.5-10 mm |
Max. stirring quantity (H20)[L] | 50 L |
Voltage [V] | 100-120/200-240 |
Frequency [Hz] | 50/60 |
Max. output power [W] | 160 |
Speed display | LED |
Overload protection | YES |
Motor protection | YES |
Over temperature protection | YES |
Dimensions (D×W×H)[mm] (without extension arm) | 71×174×240 |
Weight [kg] (with extension arm and clamping chunck) | 2.8kg |
Protection class according to DIN EN60529 | IP42 |
Permissible ambient temperature [°C] | 5-40℃ |
Permissible relative humidity [%] | 80% |

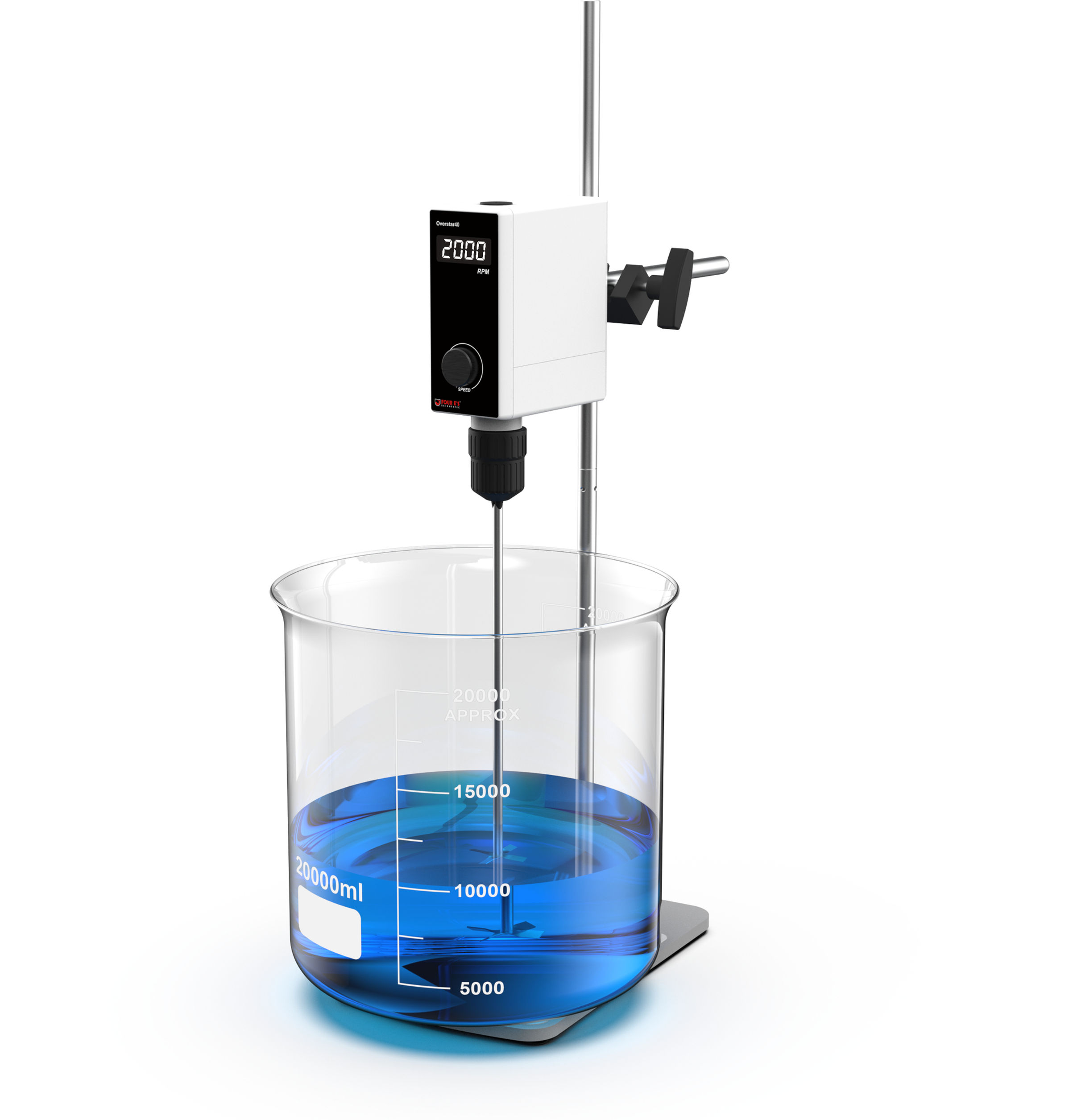

Four E's Scientific 50L Overhead Stirrer OHS-60D
Product Description
50L Overhead Stirrer OHS-60D
High-capacity overhead stirring delivers constant speed for viscous samples.
Wide speed range supports precise control across diverse mixing applications.
Brushless DC motor with overload and auto cut-off ensures safe operation.
Through-shaft design enables quick impeller adjustment and reduced downtime.
The 50L LED Digital Overhead Stirrer is designed for powerful, consistent mixing of large-volume samples. Featuring a maintenance-free brushless motor, wide speed range, clear LED monitoring, and advanced safety protections, it delivers reliable performance with efficient, low-downtime operation.
Technical Documents
Warranty
24-Month Manufacturer Warranty
Research Use Only
This product is for research use only.
Shipping Info
A flat shipping fee of £300 per order applies to all purchases. This charge applies to the entire basket, not individual items
Customers may alternatively arrange their own shipping if they have existing logistics arrangements in place. Please contact us prior to ordering to coordinate self-collection or third-party transport.
