Model | TC0401003 |
Number of blocks | 4 |
Power [W] | 430 |
Heating temperature range [°C] | room temp.+5°C-150°C |
Temperature display | LED |
Adjustment and display resolution [K] | 0.1 |
Connection for ext. temperature sensor | DIN 12 878 |
PT 1000 variation; DIN EN 60751 Kl. A [K] | < = ± (0.15 + 0.002 x ITI) |
Temperature stability within the blocks at 37°C | ±0.5°C |
Temperature stability within the blocks at 60°C | ±0.5°C |
Temperature uniformity at 37°C | ±0.5°C |
Heating rate / Heat up time with external sensor * [K/min] | 4 |
Set-up plate material | Aluminium alloy |
Set-up plate dimensions [mm] | 96x304 |
Fixed safety circuit [°C] | 180 |
Timer | √ |
Time setting range | 1min - 99h59min |
Dimensions (W x H x D) [mm] | 152 x 86 x 465 |
Weight [kg] | 7.5 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity | 80% |
Protection class according to DIN EN 60529 | IP 21 |
Voltage [V] | 100-120VAC/200-240VAC； 50Hz/60Hz |
Frequency [Hz] | 50/60 |

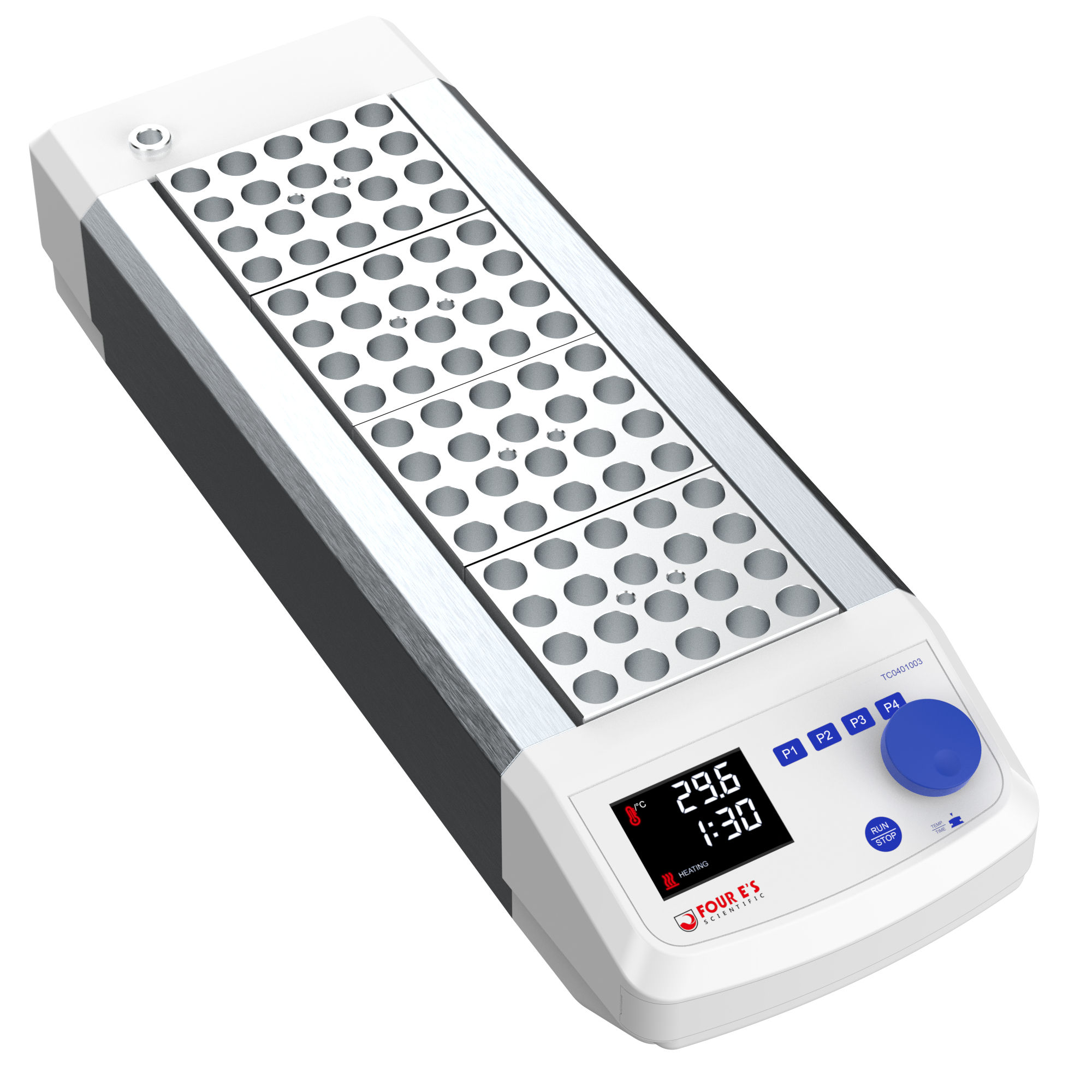

Four E's Dry Bath Incubator (4 Blocks) TC0401003
Product Description
Dry Bath Incubator (4 Blocks) TC0401003
Four-block configuration enables high-throughput, parallel sample incubation.
Precise temperature control up to 150 °C with excellent stability.
Digital wheel and LED display provide accurate, user-friendly operation.
PT1000 sensor compatibility ensures true sample-level temperature control.
The Dry Bath Incubator (4 Blocks) offers accurate, stable heating for high-throughput laboratory workflows. With four interchangeable blocks, digital control, and PT1000 sensor support for direct sample temperature monitoring, it delivers reliable and flexible incubation for molecular biology and biochemical applications.
Technical Documents
Warranty
24-Month Manufacturer Warranty
Research Use Only
This product is for research use only.
